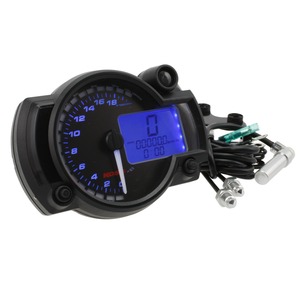

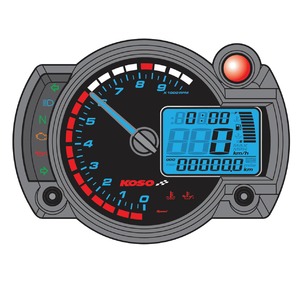

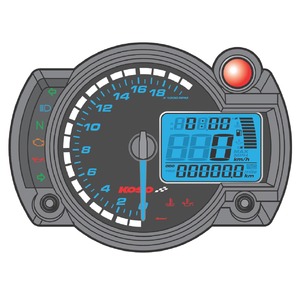

Koso RX2N+

Kompakt digitalt instrument med mange funksjoner. Oversiklig og tøft design.

Varenr.: 319850

Produktbilde
Logo Koso Europe GmbH & CO KG

3 190,-

Kun 1 igjen
Velg variant:
  • Fast frakt på kr. 99,- / 149,-
  • 1-3 dager levering

Produktbeskrivelse

Kompakt versjon av RX2 panelet med Max Power Test.
Blå bakgrunnsbelysning og oversiktlige varsel lys. Kan velge mellom MPH og Km/t alt etter ønske.
Kan monteres på de fleste kjøretøy med 12V. anlegg.


2.stegs, justerbar shift-light kan stilles inn etter ønske.


Detaljert spesifikasjoner


Speed unit
km/h / MPH alternative
Speedometer range
0~360 km/h (0~223 MPH)
Odometer
0~99,999.9 km (mile)
Trip A.B
0~999.9 km (mile)
Speeding warning setting range

30~180km/h (20~110MPH)


Adjust unit: 5 km/h (5 MPH)
Top speed record
0~360 km/h (0~223 MPH)
Tire Circumference setting

300~2,500 mm


Adjust unit: 1 mm, sensor point: 1~60
Tachometer range

0~15,000 RPM


Display unit: 100 RPM
Over RPM shift light setting

5,000~15,000 RPM


Adjust unit: 100 RPM
Max RPM record
0~15,000 RPM
Stroke/ Piston setting

2 Stroke: 1, 2, 3, 4 pistons


4 Stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons
Temperature unit
°C, °F
Digital water temperature range

0~120°C (32~248°F)


Display unit: 0.1°C (0.1°F)
Temperature level gauge display range

20~120°C (68~248°F)


Display unit: 1 level = 10°C (50°F)
Digital oil temperature range
0~120°C (32~248°F)

Display unit: 0.1°C (0.1°F)
Over temperature warning setting

60~120°C (140~248°F)


Adjust unit: 1°C (1°F)
Top temperature record
0~250°C (32~482°F)
Fuel gauge
Display in 10 levels (one level means 10% fuel)
Fuel resistance setting
100 Ohm · 510 Ohm
Insufficient fuel warning setting

10~50%


Adjust unit: 10%
Clock
24h
Target speed timer

30~360 km/h (20-220 MPH)


Adjust unit: 5 km/h (5MPH)
Target distance timer

50~1,000 m (1/32~20/32 mile)


Adjust unit: 50 m (1/32 mile)
Top Speed timer

the record includes:



1. Speed:          0~360km/h (0~223 MPH)



2. Distance:      0~999 m (0~3,280 feet)



3. RPM:            0~15,000 RPM


4. Timer:           0~9 `59 ``99
Indicator light

Direction indicator (green)



High beam (blue)



Oil (red)



Eobd (amber)



Engine Idle (green)


Speeding (red)
